The Ultimate Platform for Gamers and Creators
Powered by GeForce RTX 40 Series and DLSS 3
-
New Streaming Multiprocessors
Up to 2x performance and power efficiency
-
Fourth-Gen Tensor Cores
Up to 4x performance with DLSS 3
vs. brute-force rendering -
Third-Gen RT Cores
Up to 2x ray tracing performance
CHANGE THE GAME
Find prestige from SUPRIM LIQUID with its high-quality materials, bold style, and evolutionary hybrid thermal design.
Specifications:

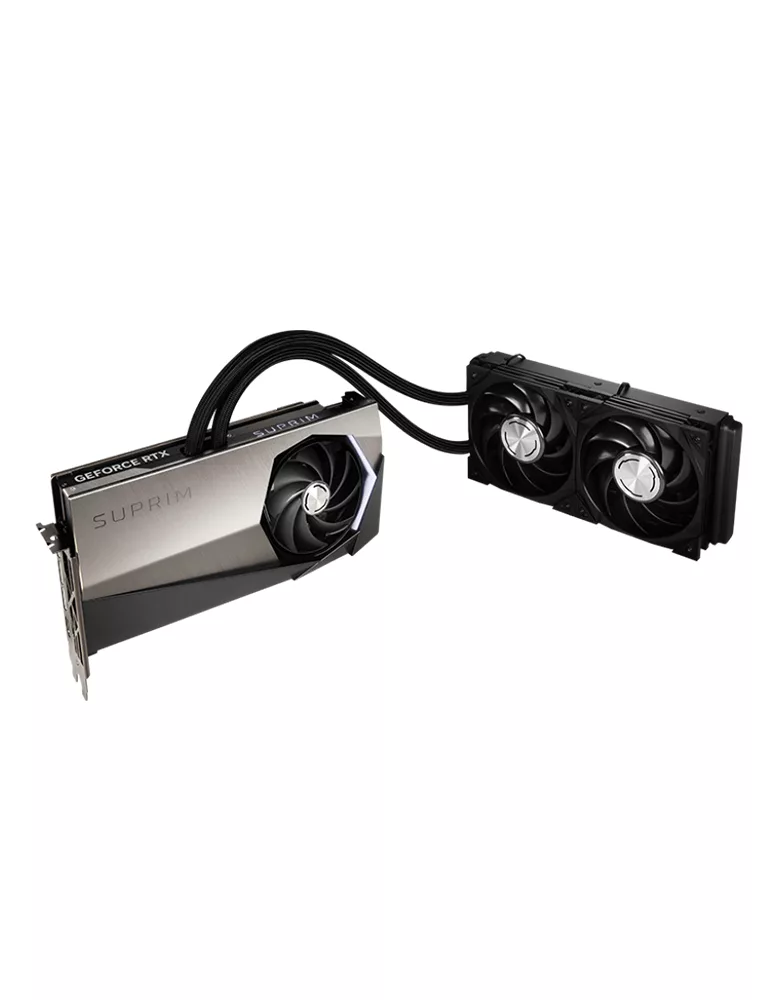

Model Name: GeForce RTX™ 4090 SUPRIM LIQUID X 24G
Graphics Processing Unit NVIDIA®
GeForce RTX™ 4090
Interface PCI Express®
Gen 4
Core Clocks
Extreme Performance: 2640 MHz (MSI
Center)
Boost: 2625 MHz (GAMING & SILENT Mode)
CUDA®
CORES 16384 Units
Memory Speed 21 Gbps
Memory 24GB GDDR6X
Memory Bus 384-bIt
Output
DisplayPort x 3 (v1.4a)
HDMI™ x 1 (Supports 4K@120Hz HDR,
8K@60Hz HDR, and Variable Refresh Rate as
specified in HDMI™ 2.1a)
HDCP Support Y
Power consumption Silent mode: 450W
Gaming mode: 480W
Power connectors 16-pin x 1
Recommended PSU 1000W (Min. 850W)
Card Dimension (mm)
Card: 280 x 140 x 43 mm
radiator + fan: 274 x 121 x 55 mm
Tube length: L470 ± 10 x D11.2 mm
Weight (Card / Package) 2353 g / 3837 g
DirectX Version Support 12 Ultimate
OpenGL Version Support 4.6
Maximum Displays 4
G-SYNC®
technology Y
Digital Maximum Resolution 7680×4320
Graphics Processing Unit NVIDIA®
GeForce RTX™ 4090
Interface PCI Express®
Gen 4
Core Clocks
Extreme Performance: 2640 MHz (MSI
Center)
Boost: 2625 MHz (GAMING & SILENT Mode)
CUDA®
CORES 16384 Units
Memory Speed 21 Gbps
Memory 24GB GDDR6X
Memory Bus 384-bIt
Output
DisplayPort x 3 (v1.4a)
HDMI™ x 1 (Supports 4K@120Hz HDR,
8K@60Hz HDR, and Variable Refresh Rate as
specified in HDMI™ 2.1a)
HDCP Support Y
Power consumption Silent mode: 450W
Gaming mode: 480W
Power connectors 16-pin x 1
Recommended PSU 1000W (Min. 850W)
Card Dimension (mm)
Card: 280 x 140 x 43 mm
radiator + fan: 274 x 121 x 55 mm
Tube length: L470 ± 10 x D11.2 mm
Weight (Card / Package) 2353 g / 3837 g
DirectX Version Support 12 Ultimate
OpenGL Version Support 4.6
Maximum Displays 4
G-SYNC®
technology Y
Digital Maximum Resolution 7680×4320
